Panel bonding applications in the automotive industry have increased significantly during recent years. Learn everything you need to know about rear panel repair with TEROSON® EP 5055.
In our instructions, we show replacing a rear panel with TEROSON® EP 5055 panel bonder. Make sure to always follow the manufacturer's instructions.
All repair and maintenance tasks shown should be done by professionals only. Please do not try this at home if you are not qualified or professionally educated. Always follow car manufacturer's instructions.
Limitation of liability

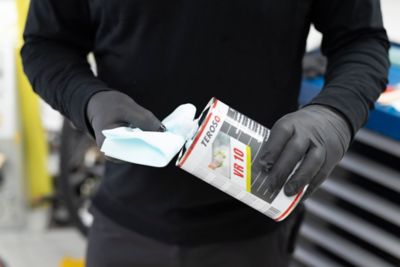

Bonding surfaces must be free of oil, grease, dust, or any other contaminant. Clean bonding surfaces with TEROSON® VR 10 and a lint-free cloth.

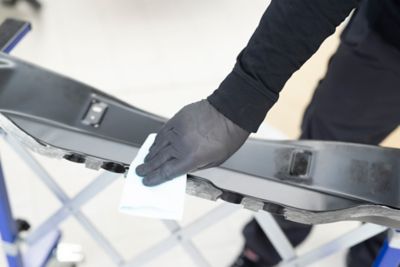

Remove old adhesive from existing body parts to make sure they are back to bare metal and free of any contamination.

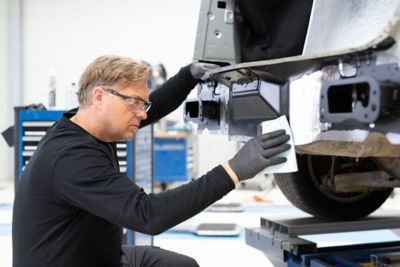

Both bonding surfaces must be cleaned again to remove grinding dust. Pretreat bonding surfaces with TEROSON® VR 10. Allow the prepared surfaces to dry for approx. 5 minutes.

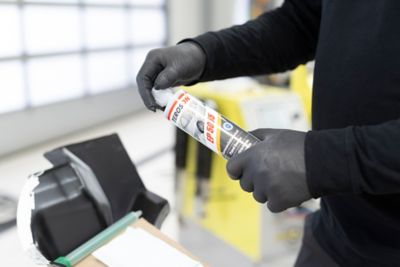

Unscrew the coupling ring and remove the cap from TEROSON® EP 5055 cartridge. Before attaching the static mixer to the cartridge, squeeze out a small amount of material until both adhesive components run equally. This is necessary to achieve a good mix of the two components.

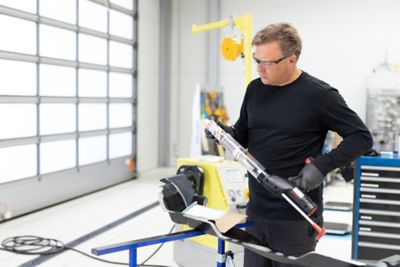

Attach the static mixer and fix it with the coupling ring. Insert the cartridge into the application dispenser.
When mixed, TEROSON® EP 5055 is very dark grey in colour (almost black). Discard first 5 cm of adhesive.
Apply and spread TEROSON® EP 5055 with a spreader or brush. All bare metal areas should be covered with adhesive for corrosion protection. TEROSON® EP 5055 can be used on steel and aluminium panels and as part of the preparation. With new panels, the ‘e coat’ must be removed from the bonded area and adhesive applied and spread to cover the bare metal.
Open time for mixed adhesive (at normal room temperature of 23°C) is approximately 60 minutes. It may be necessary to change the static mixer if no material has been passed through it in over 30 minutes.

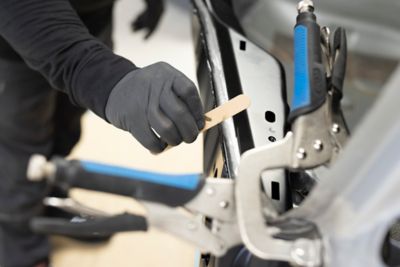

Remove excess adhesive immediately with spatula or cloth and TEROSON® VR 10. Cured adhesive can only be removed mechanically.

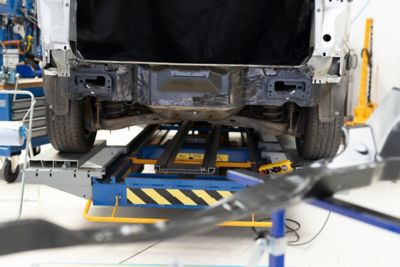

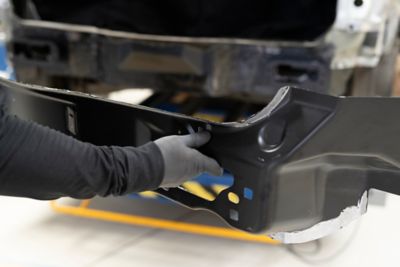

Join and fix components within the 60 minutes processing time. If spot welding is required, it must be carried out during this initial period. Do not subject bonded parts to stress before final cure.

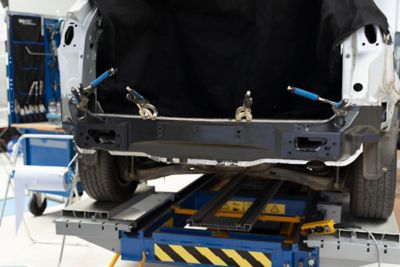

The adhesive cures at room temperature. (Initial strength approx. 4 hours at 23°C; final strength approx. 48 hours at 23°C.) Curing time can be accelerated using common tools like infrared or heating pads. (Final minutes at 65°C or 30 minutes at 100°C.) During the curing phase, avoid movement or stress until the product is fully cured.
When initial bond strength has been reached, bonded parts can be painted.
